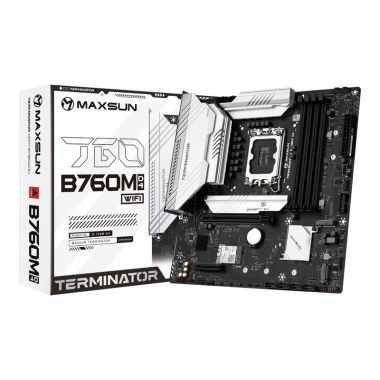

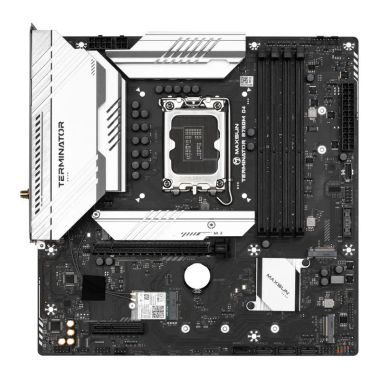

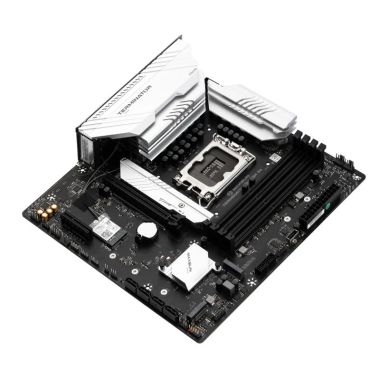

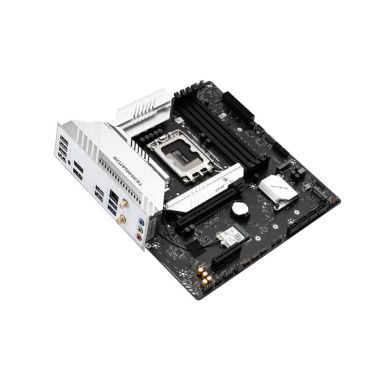

Mainboard MAXSUN Terminator B760M D4 WIFI | LGA 1700

Giới thiệu Mainboard MAXSUN Terminator B760M D4 WIFI | LGA 1700

Mainboard MAXSUN Terminator B760M D4 WIFI | LGA 1700 hỗ trợ

• 10 phases core 50A Dr.Mos power supply
• 6 layers 2oz PCB
• Alloy Radiator Armor
• 3*M.2
• 2.5G Networkcard
• 20Gbps USB Type-C

Thông tin chi tiết

CHIPSET INTEL B760

CPU Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
LGA 1700

MEMORY

4x DDR4, Maximum Memory Capacity 128GB
Memory Support DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MHz
Supports Intel® XMP 2.0 OC
Supports Dual-Controller Dual-Channel mode

ONBOARD GRAPHICS

1x DisplayPort 1.4

1x HDMI™port
*HDMI™ port supports up to 4K@30Hz
*Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

EXPANSION SLOT

1x PCIe 5.0 x16 slot

1x PCIe 3.0 x4 slot

STORAGE

M.2_1 slot (Key M), type 2242/2280 (supports PCIe 4.0 x4 mode)

M.2_2 slot (Key M), type 2242/2280/22110 (supports PCIe 4.0 x4 mode)

M.2_3 slot (Key M), type 2242/2280/22110 (supports PCIe 4.0 x4 mode)

4 x SATA 6Gb/s ports

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB

*Front USB (Total 5 ports)
1x USB 3.2 Gen2x2 Type C
2x USB 3.2 Gen1 Type A
2x USB 2.0
*Rear USB (Total 8 ports)
2x USB 3.2 Gen1 Type A
6x USB 2.0

LAN

Realtek® RTL8125BG 2.5G LAN

WIRELESS / BLUETOOTH

Intel® Wi-Fi 6 AX101

The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz* (80MHz) up to 600Mbps
Supports 802.11 ax
Supports Bluetooth® 5.2

AUDIO

Realtek® ALC897 Codec

5.1-Channel High Definition Audio

INTERNAL I/O

1x 24-pin Power Connector(ATX_PWR)

1x 8+4-pin Power Connector(CPU_PWR)
1x CPU Fan
3x System Fan
3 x M.2 slots (Key-M)
4x SATA 6Gb/s ports
2x 5V 3-Pin ARGB
1x 12V 4-Pin RGB
1x Clear CMOS
1x 4-Pin SPEAKER
1x Front Audio
1x M.2 slots (Key-E)
1x COM_A Port
1x TPM pin header(Support TPM 2.0)

LED FEATURE

4x Distributed Debug LED

OPERATING SYSTEM

Support for Windows® 11 64-bit, Windows® 10 64-bit

FORM FACTOR

M-ATX (245mm x 245mm)
